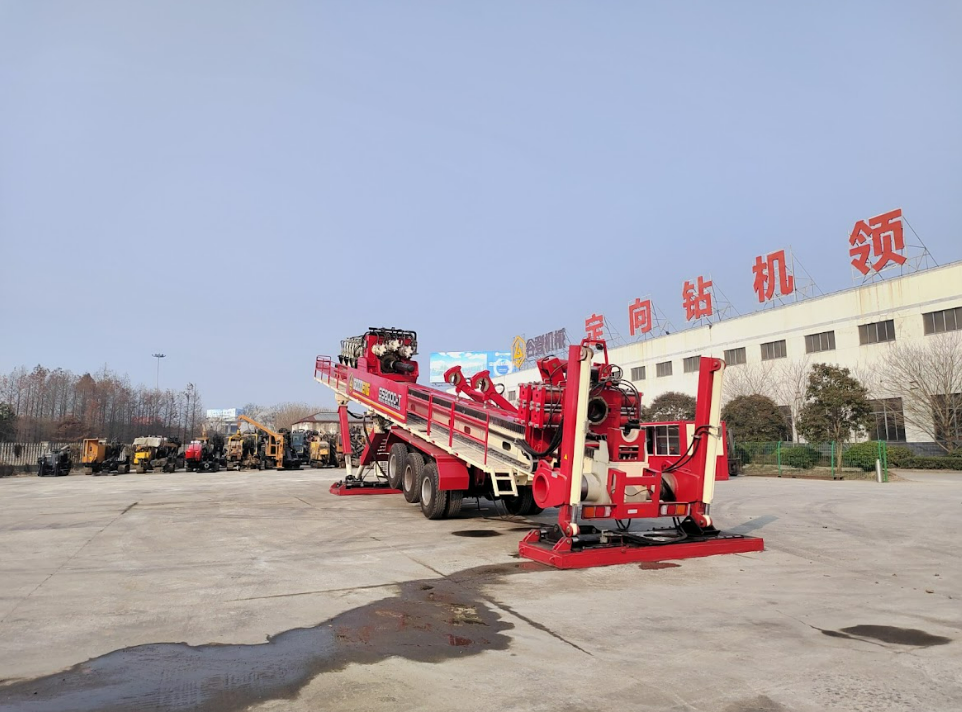

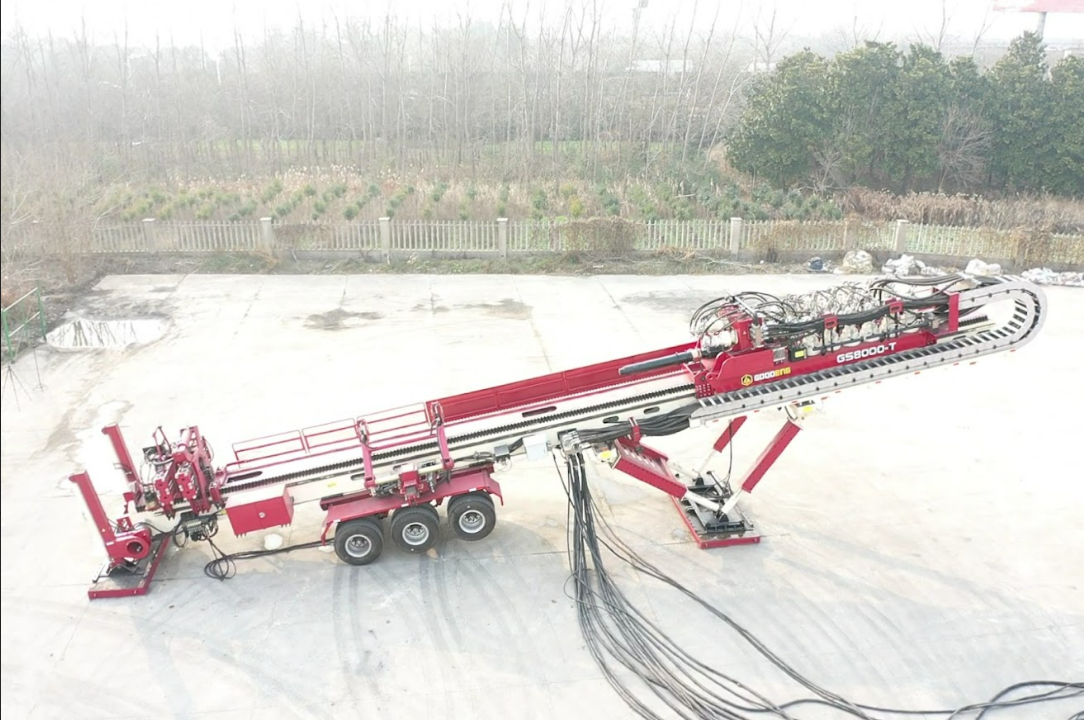

Goodeng GS8000-LS HDD Machine
.png)
.png)
.png)
.png)
Description
The Goodeng GD8000 LS HDD Machine is a high-performance piece of equipment designed for advanced horizontal directional drilling (HDD) operations. With a robust rig weight of 67,000 kg, this machine is built to handle demanding drilling tasks. Its large dimensions, measuring 21,600×2,700×3,900 mm, provide ample space for the installation of various components, ensuring efficient operation in a range of environments.
Designed to operate in a wide range of environmental conditions, the Goodeng GD8000 LS HDD Machine can function effectively within temperatures of -20°C to 45°C and under humidity levels exceeding 90%. It offers a maximum back-reaming diameter of Φ2000 mm and a maximum crossing length of 3,000 meters, depending on soil conditions, making it an ideal choice for extensive and complex drilling projects.
×
![]()
×
![]()
Specifications
| Rig weight | 67000kg | Rig Dimension (L×W×H) | 21600×2700×3900mm |
| Max thrust & pullback force | 8040kN | Max thrust & pullback speed | 42m/min |
| Max torque | 210000N·m | Max rotation speed | 90rpm |
| Max clamp force | 1526kN | Max unscrewing force of pipe jaw | 610000N·m |
| Engine power | 3×410kW | Max working pressure | 35MPa |
| Drill pipe diameter | Φ168mm-Φ254mm | Max length of drill pipe | 9.6m |

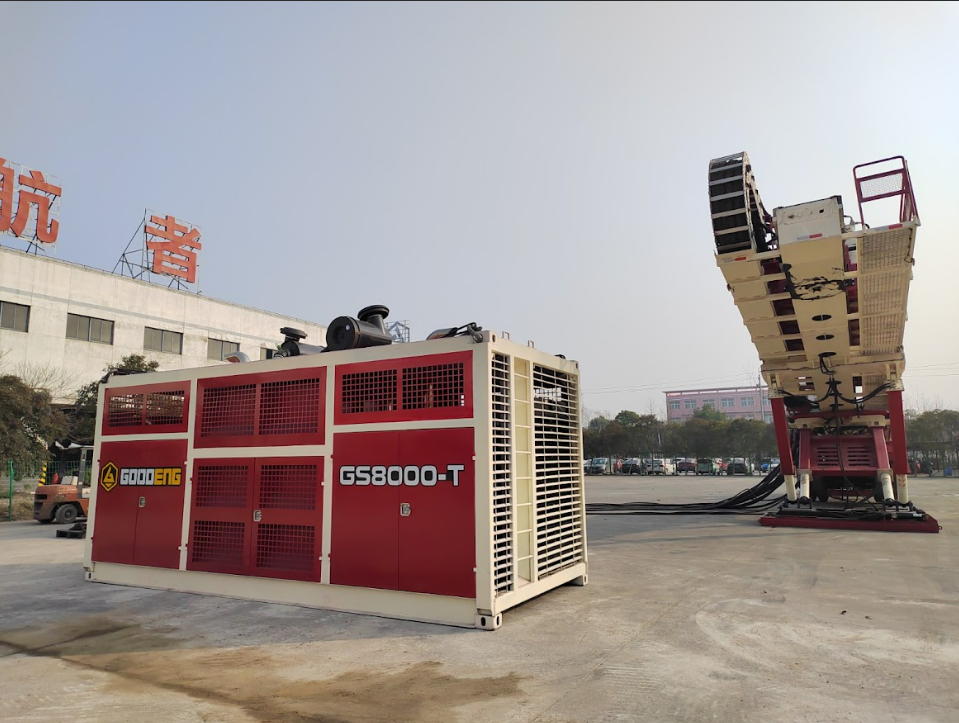

| Operation room dimension | 6100×2500×2600mm | Power station size | 6100×2500×2600mm |
| Main spindle floating distance | 110mm | Mud pipe channel diameter | 4" |
| Entry angle | 9°-16° | Max mud pressure | 20MPa |
| Permitted environment temperature | -20°C-45°C | Permitted environment humidity | >90% |
| Max back-reaming diameter | Φ2000mm (soil depended) | Max crossing length | 3000m (soil depended) |
