Description

• Cummins turbocharged engine has strong power and stable performance, with fuel consumption more than 20% lower than other engines.

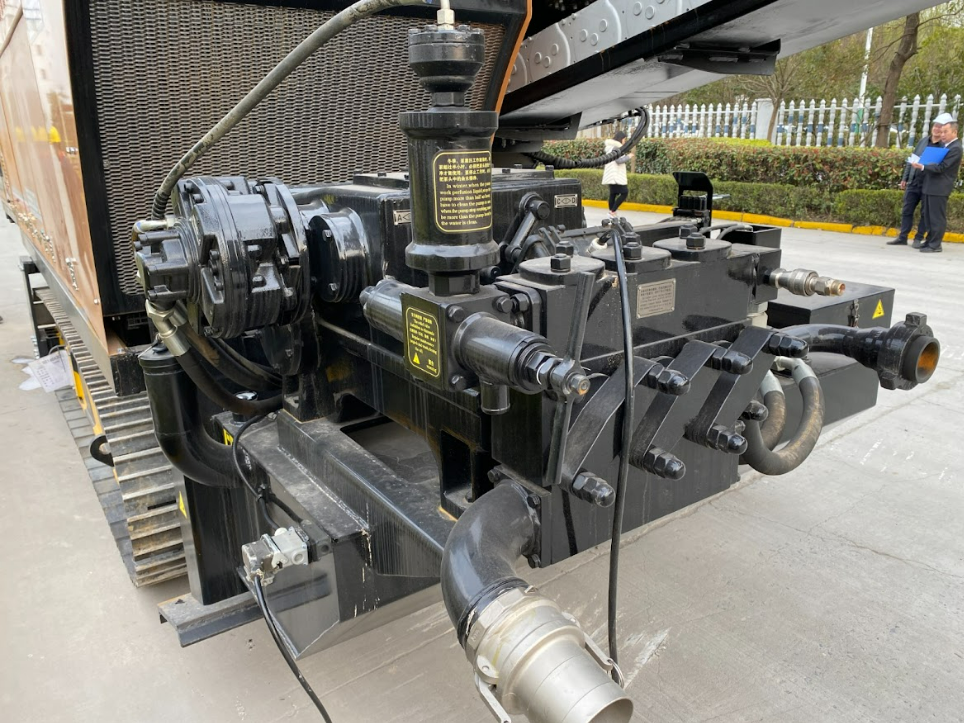

• Equipped with imported electric proportional motor, simple gear transmission structure, and reliable performance. Push-pull features stepless speed change with force up to 1,700kN, offering industry-leading work efficiency.
• Adopts internationally renowned brand two-speed motor, allowing traveling speeds up to 6 km/h. No loading is required for short-distance transitions.
• The center of the clamp is low, which efficiently protects the drill pipe and occupies less space for construction. The front and rear clamps can be separated, and clamping blocks can be replaced according to drill pipe specifications.
• The main shaft is floating, which helps protect the drill rod thread.
• Large angle change range (10° ～22°), low center of gravity of the drilling rig, providing good stability.
• Proportional wire-controlled walking system ensures the safety of equipment and personnel, and facilitates convenient and quick walking, transferring, and loading & unloading of drilling rigs.
• Three free angles high-end rotary manipulator.
• Goodeng's patented rotary manipulator enables automatic loading and unloading of rods, enhancing safety and convenience, and greatly reducing operating costs. The rotatable cab offers a good view and is equipped with heating and cooling air conditioning, effectively improving the working environment for the main operator.
• Real-time monitoring and adjustment of equipment status make operation easier and more comfortable.
• The system features two operation modes: automatic and manual. In automatic mode, operating parameters can be adjusted in real time according to geological conditions to protect the drilling rig.
