Description

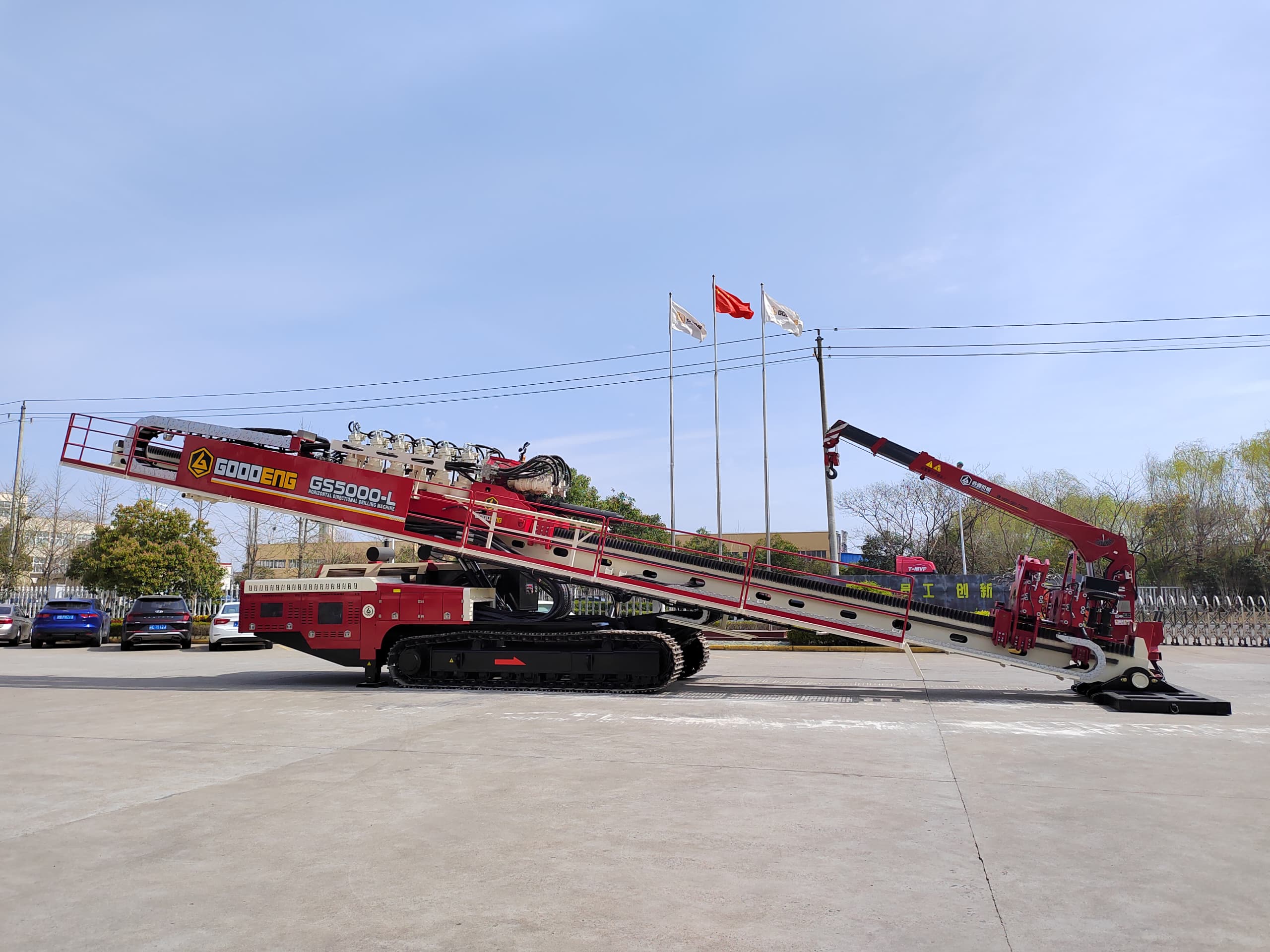

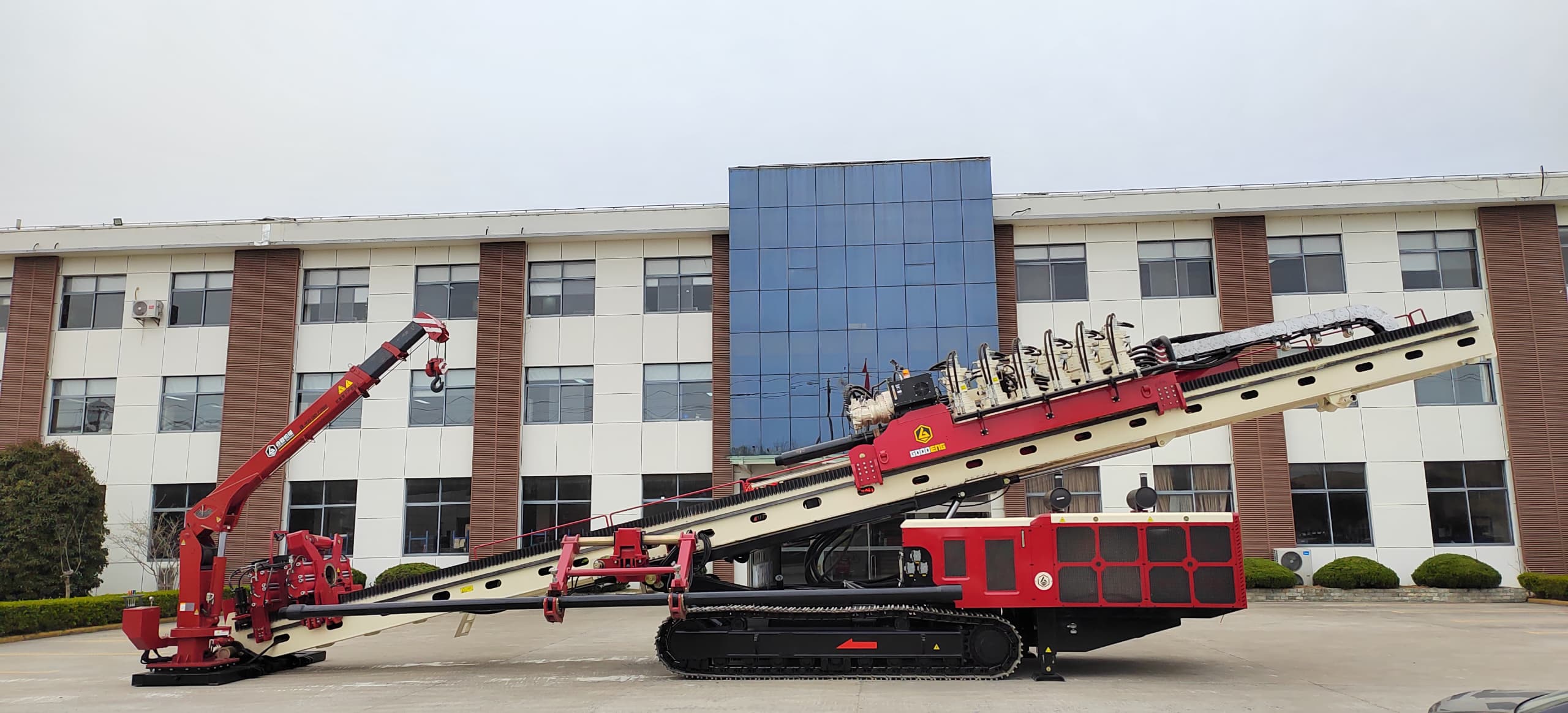

1. Whole machine structure: The main engine and power system are integrated, compact in appearance, 3m wide and 3.6m high, meeting domestic and foreign transportation regulations for convenient transportation.
2. Three-stage electronic control engine: Meets state requirements for construction machinery. The three-stage emission design enables flexible single or dual-machine operation, saving energy and reducing waste.
3. Unique design for power head structure:
   • The gearbox is front-mounted and the rotary drive sub is shortened to protect the drill rod thread, reducing damage and extending the drill rod's life.
   • Double-layer structure gear box with dual-standard design for finite element rigidity and strength, making the gear box solid and reliable.
   • Sunken design of the gear box improves its force under maximum push-pull force.
   • Floating design of the power head spindle fully protects the drill rod thread.
4. Four-point patented technology clamp: Improves stiffness and strength of the structure. Compared to the three-point type, it has more cylinders, larger contact points, and a greater contact area. Clamping force and shackle torque are greatly improved, and on-site maintenance and replacement of vice jaw are convenient and fast.
5. Auto rod loading mechanism: Patented, mature, and reliable technology with high automation, reducing labor intensity.
6. Automatic drilling control system: Ensures constant torque drilling under set torque and push-pull force. Parameters are more accurately controlled via the computer, achieving overload protection of the drill pipe.
7. Humanized intelligent electro-hydraulic control and monitoring system:
   • Double display system for digital and electronic parameters to ensure reliable machine operation.
   • Monitors engine parameters, system pressure, rotation torque, speed, push-pull force, and more.
   • Electro-hydraulic monitoring and fault diagnosis system for easy maintenance.
8. Patented clutch technology: Applies mechanical or hydraulic clutches to the push-pull and rotation systems, improving power system efficiency and reducing construction costs.
9. Rotary and push-pull anti-shock technology: Protects the rotary and push-pull motors from the impact of rocks and other complex conditions, increasing reliability and motor life.
10. Industry-leading hydraulic control system: Uses world-class brand hydraulic components for precise control, improving efficiency, reducing energy consumption, and increasing high-temperature and anti-pollution resistance.
11. High-reliability electrical system: First-class electrical components and integrated harness design ensure reliability and stability.
12. Humanized operation room: Spacious with a wide field of vision. The console is designed with no tubing connections, and a more than 20m cable provides convenience and a cleaner environment.
