Description

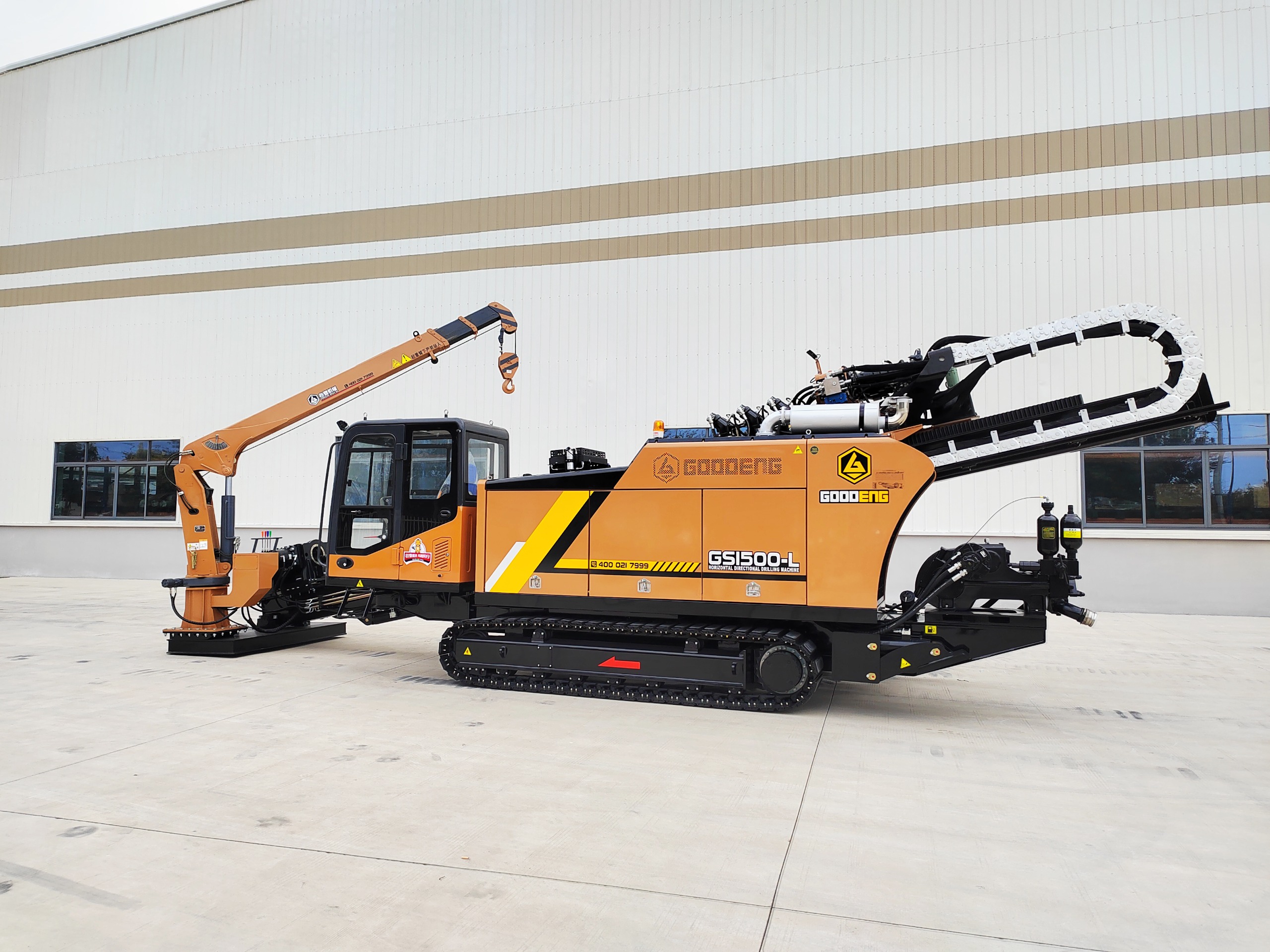

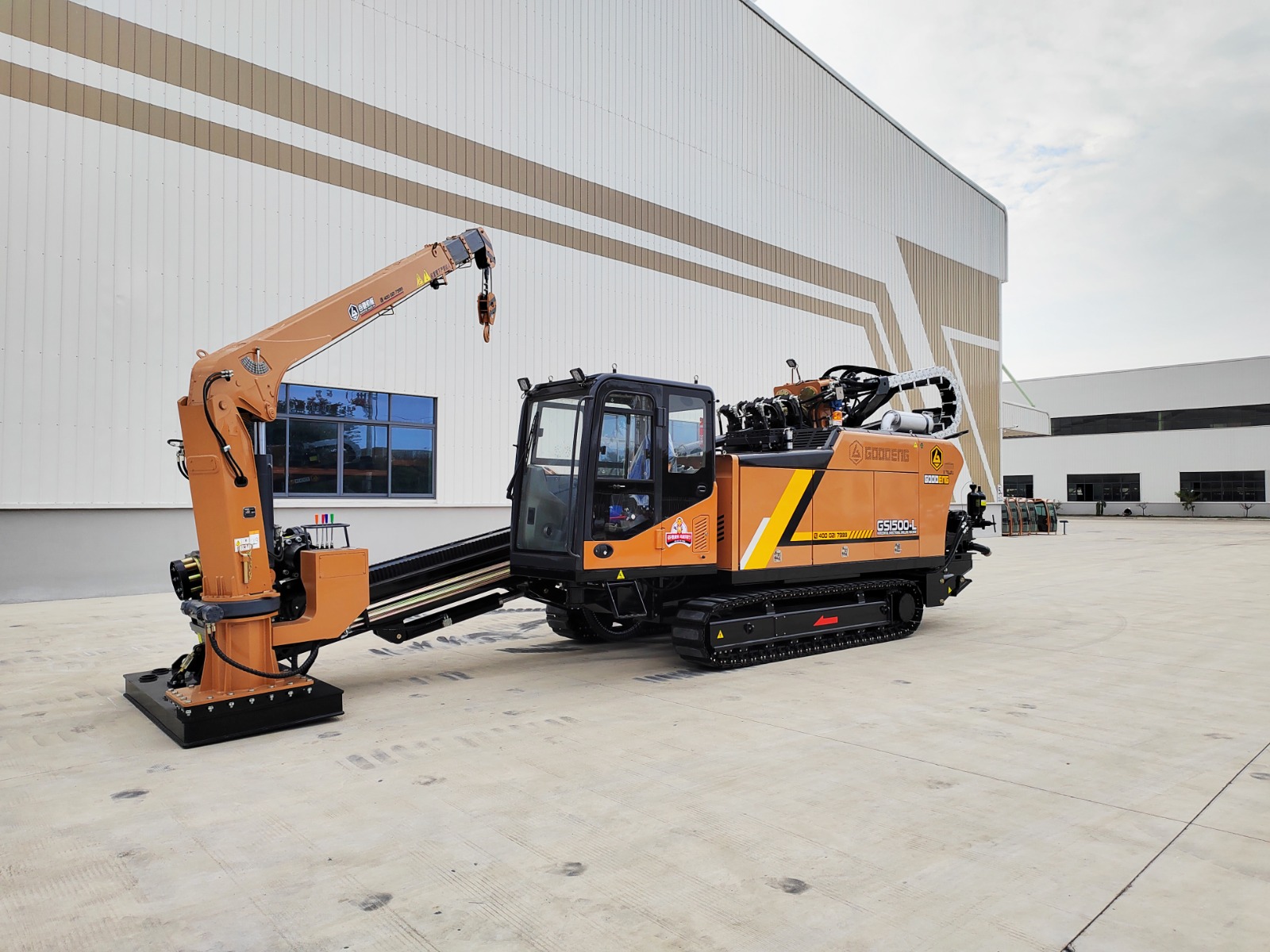

• The GS1500-LS Horizontal Directional Drilling Machine has a substantial weight of 23,000 kg, providing stability and support for demanding drilling tasks.
• It features a maximum thrust and pullback force of 1,500 kN, allowing it to handle large-diameter boreholes and challenging soil conditions effectively.
• The machine is equipped with a powerful engine delivering 264 kW, ensuring high performance and efficiency during operation.
• Its dimensions are 11,000 mm in length, 2,700 mm in width, and 3,300 mm in height, making it a compact yet powerful unit suitable for various job sites.
• The GS1500-LS offers a maximum thrust and pullback speed of 39 m/min and a maximum rotation speed of 90 r/min, enhancing productivity and operational efficiency.
• It has a maximum mud flow of 800 L/min and can handle a maximum mud pressure of 10 MPa, supporting effective drilling and cooling.
• The machine allows for flexible drilling angles with an entry angle range of 10° to 19° and can tackle a maximum climbing gradient of 17°.
• For drill rod size, it accommodates Φ114/Φ127×6000 mm rods, and it supports a reaming diameter of up to Φ1500 mm, providing versatility in drilling applications.
• The GS1500-LS includes a crane capacity of 3 tons and can manage a maximum crossing length of up to 1,000 meters, expanding its scope of operation.
