Goodeng GD800 LS HDD Machine
×
![]()
Specifications
| Rig weight | 16700kg | Dimension(L×W×H) | 8700×2400×2700mm |
| Max thrust & pullback force | 910/1360kN | Max thrust & pullback speed | 55m/min |
| Max torque | 35000N·m | Max rotation speed | 120r/min |
| Engine power | 220kW | Max mud pump flow | 600L/min |
| Caterpillar crawling speed | 3-5km/h | Max mud pump pressure | 10MPa |
| Entry drill angle | 12°-20° | Max climbing gradient | 18° |
| Max back-reaming diameter | Φ1500mm (soil depended) | Max crossing length | 900m (soil depended) |
Description

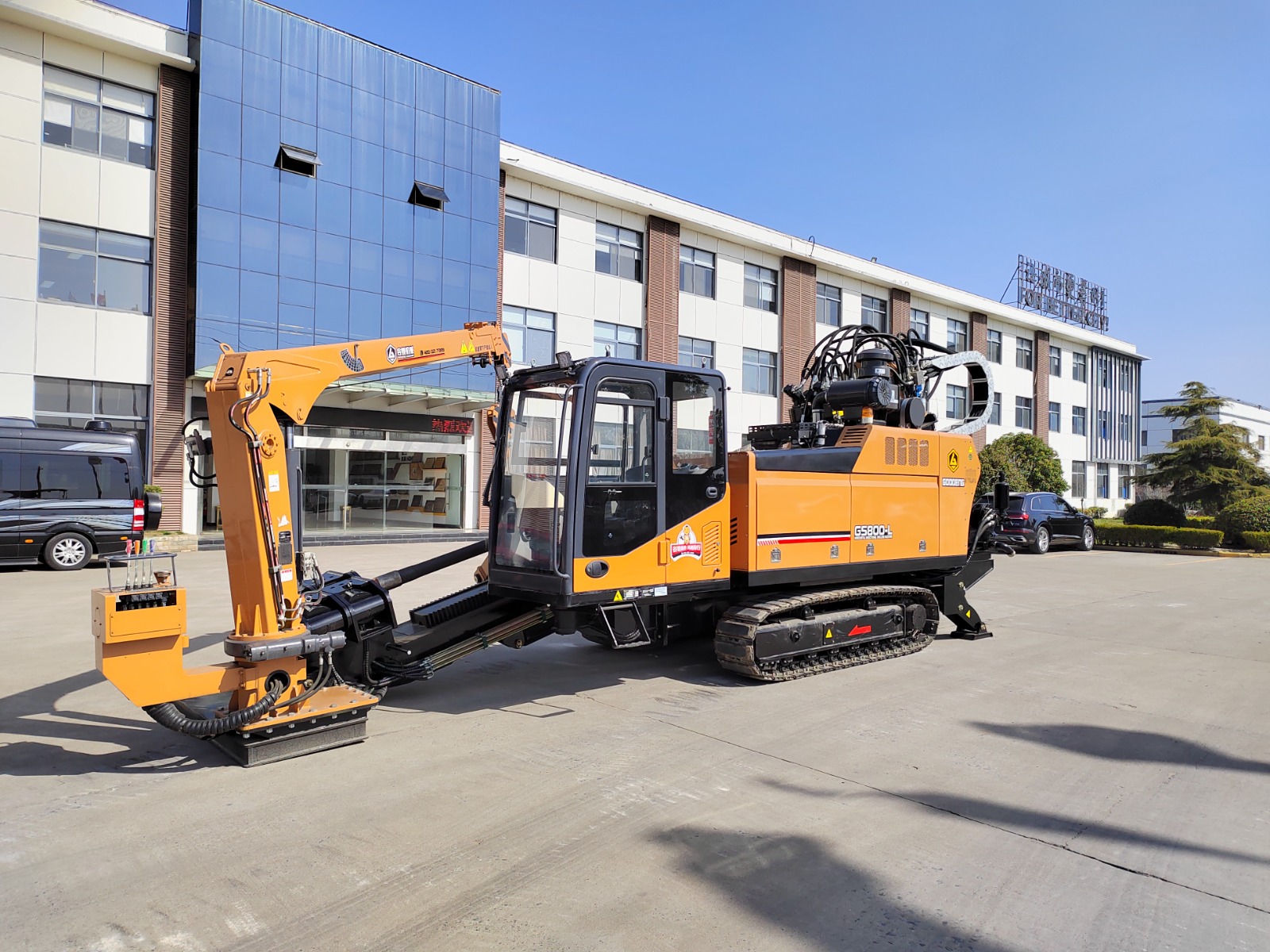

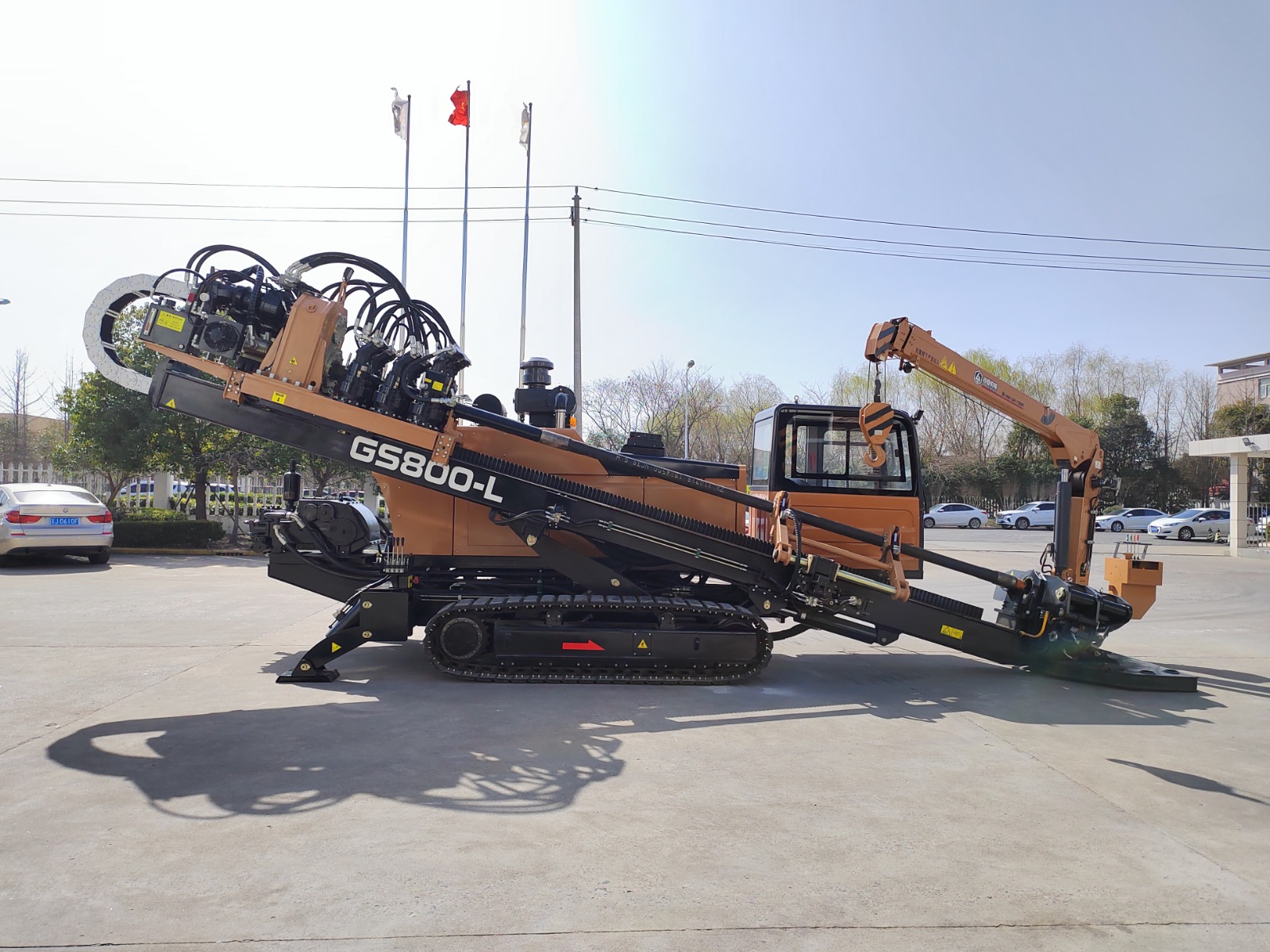

The Goodeng GS800 L HDD Machine is a high-performance horizontal directional drilling rig designed for demanding drilling applications. With a substantial rig weight of 16,700 kg, this machine is robust and capable of handling large-scale projects. Its dimensions of 8700×2400×2700 mm provide a stable platform for drilling operations.
This model features impressive thrust and pullback forces of 910/1360 kN, allowing it to handle tough ground conditions efficiently. It operates at a thrust and pullback speed of up to 55 m/min, ensuring rapid progress through various soil types. The rig’s maximum torque of 35,000 N·m and rotation speed of 120 r/min enable precise and powerful drilling operations.
